Motor, 5HP, 3520RPM, 230V, 60HZ MPN:DJ5C1K18M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2199408

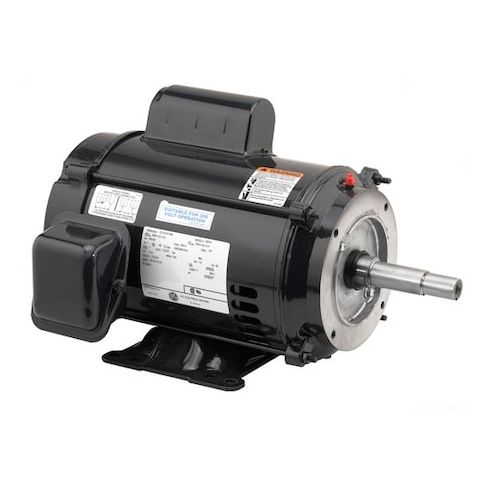

Motor, 5HP, 3520RPM, 230V, 60HZ
This high-performance 5HP motor from US Motors is designed for continuous operation in demanding applications. With a 3520RPM speed and 60HZ frequency, it's perfect for use in close-coupled pumps, providing reliable and efficient power. The motor's open dripproof enclosure and ball bearings ensure long-lasting performance in harsh environments. Its compact design, measuring 7.8 inches in diameter and 10.5 inches in height, makes it ideal for space-constrained installations. With a maximum ambient temperature of 40 degrees C, this motor can handle high-temperature applications, making it a reliable choice for industries requiring continuous power.
Top product features:
- Continuous duty cycle for uninterrupted operation
- Ball bearings for smooth and quiet operation
- Open dripproof enclosure design for protection in harsh environments
Top product applications:
- Close Coupled Pump
- Motor Application
- Motor Bearings Ball
Motor, Body Dia. 7.8 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 19.6, Height 10 1/2 in, HP 5, Ins. Class F, Length Less Shaft 15 5/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 23.2, Motor Application Close Coupled Pump, Motor Bearings Ball, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 82.00
Product info last updated on January 16, 2026 10:23am UTC
Category: Motors
