GeneralPurposeMotor, 3/4hp, 3450RPM, 56 MPN:T34CA1J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2199216
GeneralPurposeMotor, 3/4hp, 3450RPM, 56

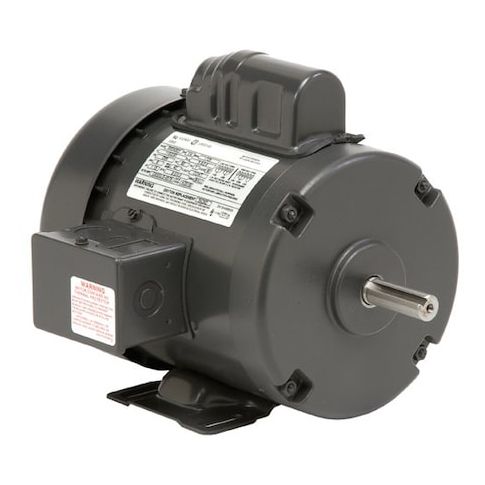

This 3/4 horsepower, 3450 RPM General Purpose Motor from US Motors is a reliable and efficient solution for a variety of applications. Suitable for single-phase use, it features a capacitor-start design and is usable at 208V. With a maximum ambient temperature of 40 degrees C, it can operate continuously in demanding environments. Its totally enclosed fan-cooled design provides protection from dust and moisture, making it ideal for use in manufacturing, material handling, and other industrial settings. Its compact size and rigid base mounting make it easy to integrate into existing systems, providing a cost-effective and reliable power solution.
Top product features:
- Single Phase Operation
- Totally Enclosed Fan Cooled Design
- Continuous Duty Cycle Operation
Top product applications:
- Pump
- Conveyor system
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 10.60
- Package Height: 10.80
- Package Weight: 25.50
Product info last updated on April 8, 2026 10:07am UTC
Category: Motors
