GeneralPurposeMotor, 1/3hp, 1725RPM, 56 MPN:T13C2J
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2196757

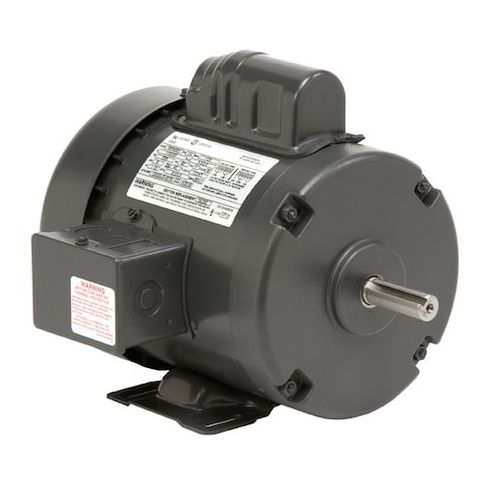

GeneralPurposeMotor, 1/3hp, 1725RPM, 56
This 1/3 horsepower, 1725 RPM General Purpose Motor from US Motors is a reliable and efficient solution for a wide range of applications. Suitable for continuous duty cycles, this motor is perfect for use in residential and commercial settings, including HVAC systems, fans, and pumps. Its totally enclosed fan-cooled design provides optimal protection against dust and moisture, while its single-phase, capacitor-start design ensures smooth and quiet operation. With a compact 56 frame size and a maximum ambient temperature of 40 degrees C, this motor is ideal for use in a variety of settings, including garages, workshops, and offices.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and quiet operating environment.
- Capacitor-Start motor design allows for efficient and reliable operation.
- Continuous duty cycle enables the motor to run for extended periods without interruption.
Top product applications:
- Pumps and water circulation systems
- Conveyor belt systems
- Fans and ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/2.9-3.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 10.40
- Package Height: 10.60
- Package Weight: 17.50
Product info last updated on February 1, 2026 1:44am UTC
Category: Motors
