Motor, 143TC, Rigid Base MPN:HD1P2EC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1941936

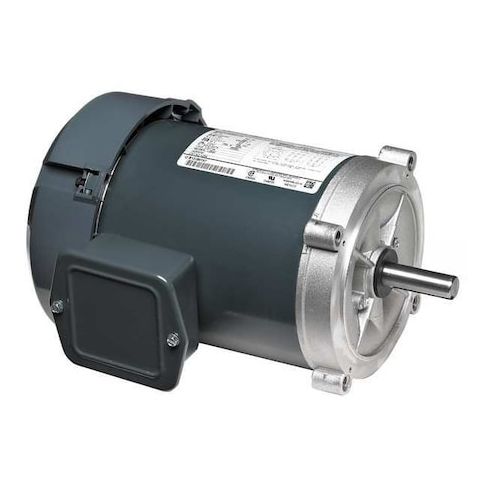

Motor, 143TC, Rigid Base
This 1 HP, 1760 RPM, three-phase motor from US Motors is designed for general purpose applications. Its totally enclosed fan cooled motor enclosure provides reliable operation in a variety of environments. Suitable for use in industrial settings, it features a rigid base mounting design and ball bearings for smooth operation. The motor's high efficiency and CSA certification make it a reliable choice for applications such as HVAC systems, pumps, and conveyors. With a service factor of 1.15, it can handle demanding loads and provide long-lasting performance. Its compact design and moderate power output make it ideal for a range of applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Three-Phase Operation
- Ball Motor Bearings
Top product applications:
- Pumps and Pumping Systems
- Industrial Laundry Equipment
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,760, Frame 143TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1,701-1,800, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 60.00
Product info last updated on February 5, 2026 6:05pm UTC
Category: Motors
