Belt Drive Motor, 1 Speed, Open Drip Proof, Cradle Base Mount, 1/2 HP, 115/208-230V AC MPN:PD6006
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1941872

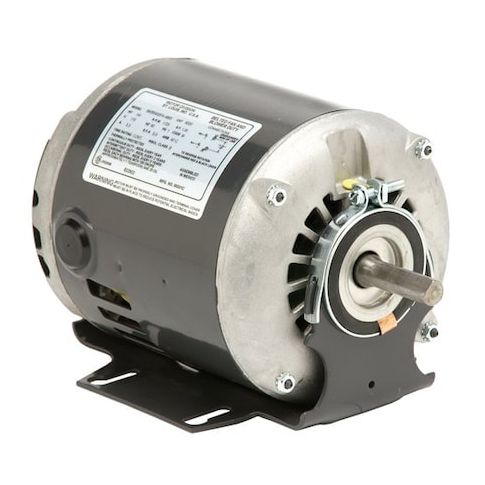

Belt Drive Motor, 1 Speed, Open Drip Proof, Cradle Base Mount, 1/2 HP, 115/208-230V AC
This 1/2 HP belt drive motor is designed for use in a variety of applications, including fans and blowers, where a reliable and efficient motor is required. The motor's open drip proof design and cradle base mount provide excellent protection against dust and moisture, making it ideal for use in harsh environments. With a continuous duty cycle and automatic thermal protection, this motor can operate at maximum efficiency and reliability. Its compact size and lightweight design make it easy to integrate into a wide range of applications, including industrial and commercial settings.
Top product features:
- Operates at a single speed
- Has a cradle base mount for easy installation
- Features an open drip-proof design for protection against dust and water
Top product applications:
- Industrial conveyor systems
- Pump applications in water treatment plants
- Ventilation systems in commercial and industrial settings
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725/1,425 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 8.6/4.2-4.3 A Full Load Amps, 48Z Frame, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 8.50
- Package Height: 10.90
- Package Weight: 20.00
Product info last updated on February 18, 2026 9:18pm UTC
Category: Motors
