Condenser Fan, 1 hp MPN:8431
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1941848

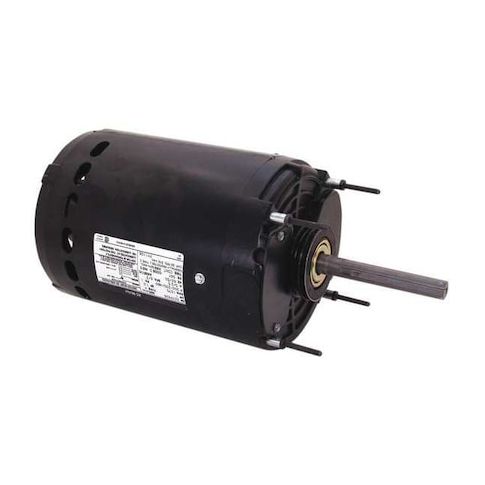

Condenser Fan, 1 hp
This 1 hp condenser fan motor from US Motors is designed for continuous operation in a variety of applications, including HVAC systems. Its capacitor-start design provides efficient performance, while its open drip-proof enclosure and hub-stud mounting type ensure easy installation and maintenance. The motor is rated for 208-230/460V AC and has a maximum ambient temperature of 60 degrees C, making it suitable for use in a range of environments. Ideal for commercial and industrial applications, this motor offers reliable performance and long lifespan, reducing downtime and maintenance costs. Its compact size also makes it easy to integrate into existing systems.
Top product features:
- 1 hp motor design allows for efficient operation and reduced energy consumption.
- Capacitor-start design enables the motor to start and run effectively.
- Open drip-proof enclosure design provides protection against dust and water ingress.
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Industrial Ventilation Systems
HVAC Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.8-5.4/2.7 A A Full Load Amps, 56YZ Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Hub, Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.50
- Package Width: 8.25
- Package Height: 9.50
- Package Weight: 32.00
Product info last updated on February 8, 2026 8:32am UTC
Category: Motors
