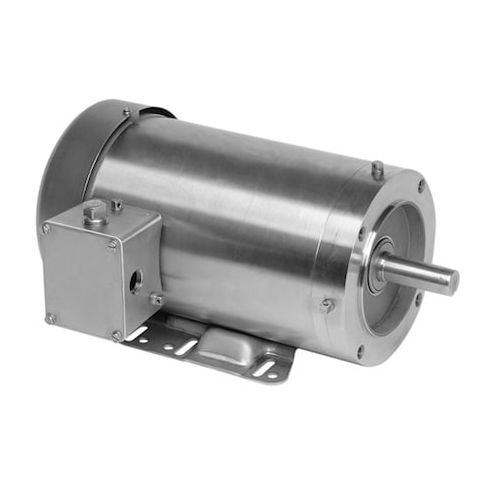

WashdownMotor, 3hp, 3490RPM, 208-230/460VAC MPN:WDS3P1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1941568
WashdownMotor, 3hp, 3490RPM, 208-230/460VAC
This 3hp Washdown Motor is designed for demanding applications in harsh environments, featuring a totally enclosed fan-cooled design and a 145TC frame for optimal performance and durability. Its 3,490 RPM and 1.2 service factor make it suitable for continuous duty cycles, while its 208-230/460V AC voltage range provides flexibility in various electrical systems. Ideal for use in washdown areas, food processing, and other industries requiring high sanitation standards, this motor offers reliable operation, easy maintenance, and a long lifespan. Its compact size and CW/CCW rotation ensure flexibility in mounting and installation, making it a versatile choice for a wide range of applications.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Three-Phase motor design for high power density and efficiency
- Continuous duty cycle operation for reliable performance in demanding applications
Top product applications:
- Water treatment plants
- Chemical processing facilities
- Food and beverage manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 8.1-7.2/3.6 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 55.00
Product info last updated on January 20, 2026 1:44am UTC
Category: Motors
