WashdownMotor, 1-1/2hp, 208-230/460VAC MPN:WDS32P1ACR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1941358
WashdownMotor, 1-1/2hp, 208-230/460VAC

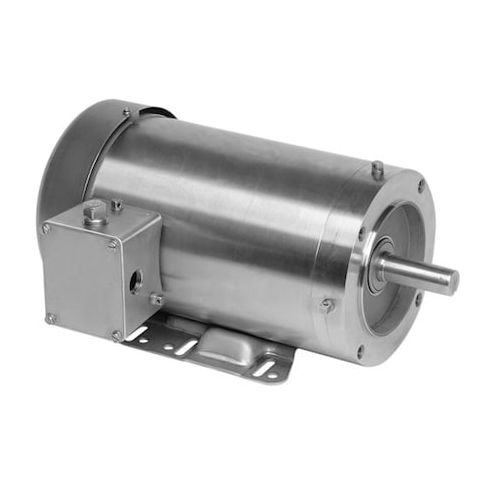

The US Motors Washdown Motor is a reliable and efficient solution for heavy-duty applications in harsh environments. Designed for continuous use in 208-230/460VAC three-phase systems, this 1.5 hp motor operates at 3,510 RPM, with a service factor of 1.2 and a thermal protection class of none. Ideal for use in washdown areas, food processing, and other applications where high humidity and moisture are present, this motor's totally enclosed fan-cooled design ensures long-lasting performance. With a lead time of just 15 days, this motor is perfect for businesses requiring quick fulfillment of their motor needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Three-Phase motor design for efficient power handling and reduced energy consumption
- Continuous Duty Cycle capability for reliable operation in demanding applications
Top product applications:
- Washdown Motor in a food processing plant's conveyor system
- Washdown Motor in a chemical processing facility's tank cleaning system
- Washdown Motor in a pharmaceutical manufacturing plant's washdown area
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,510 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.2-3.8/1.9 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 19.50
- Package Weight: 42.00
Product info last updated on February 28, 2026 10:10pm UTC
Category: Motors
