Oil Burner Motor, 1/3 hp MPN:3580
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1933728

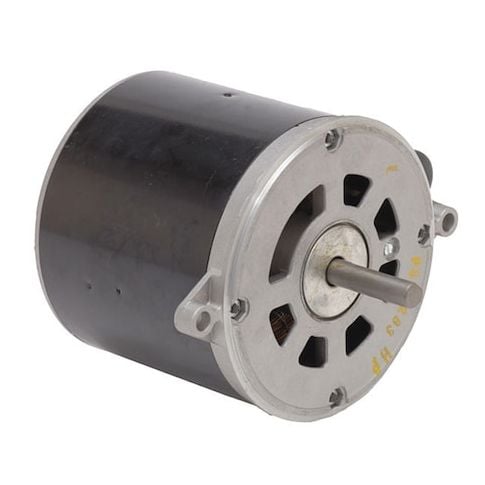

Oil Burner Motor, 1/3 hp
This 1/3 HP oil burner motor from US Motors is a reliable and efficient solution for various applications. Suitable for single-phase systems, it features a split-phase design and a continuous duty cycle, making it ideal for use in oil burners, water heaters, and other industrial equipment. With a nameplate RPM of 1,725 and a maximum ambient temperature of 104°F, this motor can withstand demanding conditions. Its totally enclosed non-ventilated design provides protection from dust and moisture, ensuring optimal performance and a longer lifespan. Perfect for use in commercial and industrial settings, this motor offers reliable operation and low maintenance.
Top product features:
- Totally Enclosed Nonventilated Motor Enclosure provides protection against dust and moisture
- Motor Shaft Rotation is Counterclockwise
- 56N Frame Design provides a compact and efficient motor configuration
Top product applications:
- Oil burner motor for residential heating systems
- Oil burner motor for commercial heating systems
- Oil burner motor for industrial heating systems
Oil Burner Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.8 A Full Load Amps, 56N Frame, 60 Hz Hz, Replacement For 56JA89, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Frame Material Steel, Inverter Rated No
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 8.20
- Package Height: 8.10
- Package Weight: 27.85
Product info last updated on March 9, 2026 1:22am UTC
Category: Motors
