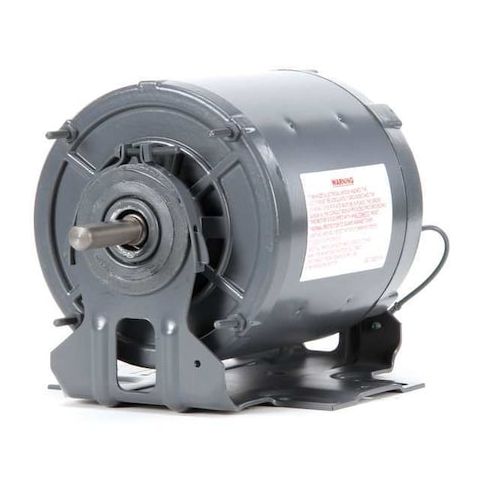

Direct Drive Blower Motor, 1/4 hp MPN:6326
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1932720
Direct Drive Blower Motor, 1/4 hp
This 1/4 HP Direct Drive Blower Motor from US Motors is a reliable and efficient solution for various applications. Suitable for use in HVAC systems, it offers continuous duty cycle operation and can withstand temperatures up to 40°C. The motor's totally enclosed air-over design provides protection from dust and moisture, ensuring optimal performance in harsh environments. With its compact size and lightweight design, it's ideal for installation in tight spaces. The motor's single-phase design and 115V AC operation make it easy to integrate into existing systems, providing a cost-effective and efficient solution for a range of applications.
Top product features:
- Direct Drive design for efficient operation
- Single Phase motor for reliable operation in single-phase electrical systems
- Totally Enclosed Air-Over motor enclosure for protection from dust and debris
Top product applications:
- Industrial HVAC systems for small to medium-sized buildings
- Commercial air handling units for offices and retail spaces
- Residential forced air heating and cooling systems
HVAC Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5 A, 56Z Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Number of Shafts 1
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 18.50
Product info last updated on February 19, 2026 10:12pm UTC
Category: Motors
