Motor, 1/3 HP, 1760 rpm, 56, 230/460V MPN:UN13T2BC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1932221

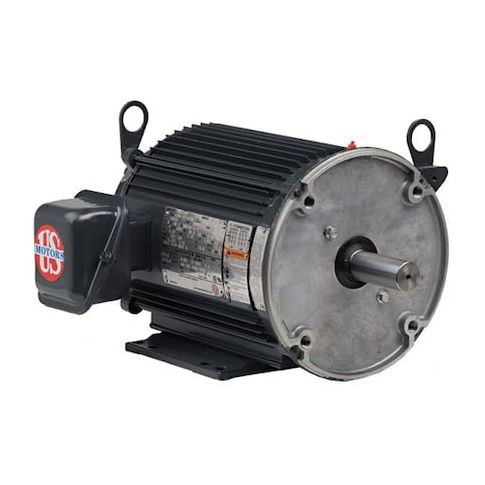

Motor, 1/3 HP, 1760 rpm, 56, 230/460V
This 1/3 HP, three-phase vector motor from US Motors is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1,760 and a speed range of 5,000:1, this motor is ideal for use in industrial settings where precise speed control is necessary. Its totally enclosed non-ventilated design protects against dust and moisture, making it suitable for use in harsh environments. The motor's compact size and high torque output make it perfect for use in conveyor systems, pumps, and other machinery where space is limited and high performance is required.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated motor enclosure
- Speed range of 5,000:1
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 1/3 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V, Full Load Amps 1.1/0.6 A, 56 Frame, Torque 1 ft-lb, Max. Speed 1,745 RPM, Speed Range 5,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 12.50
- Package Weight: 40.00
Product info last updated on March 4, 2026 11:12pm UTC
Category: Motors
