GeneralPurposeMotor, 2hp, 3450RPM, 145T MPN:T2C1J14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1931232

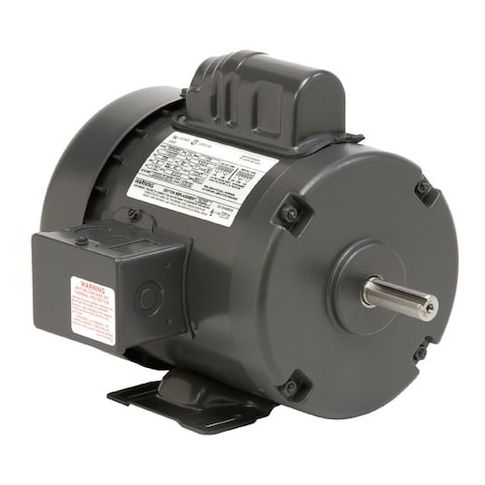

GeneralPurposeMotor, 2hp, 3450RPM, 145T
This General Purpose Motor from US Motors is a reliable and efficient solution for various applications. With a 2hp power rating and 3450RPM speed, it's suitable for a wide range of uses, including industrial equipment, machinery, and commercial settings. The motor's capacitor-start design and single-phase operation make it easy to integrate into existing systems. Its totally enclosed fan-cooled design ensures long lifespan and quiet operation, while its rigid base mounting type provides stable performance. Ideal for continuous duty cycles, this motor is perfect for applications that require consistent power and efficiency.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Single Phase motor design allows for easy installation and reduced complexity.
- Capacitor-Start motor design enables the motor to start and run efficiently.
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Industrial laundry and textile machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 19.5/10.8-9.7 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
