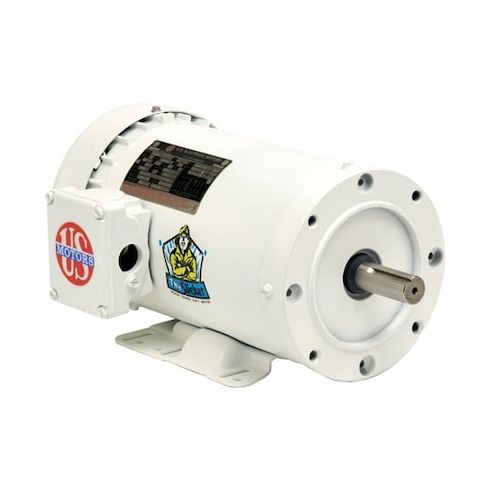

WashdownMotor, 1-1/2hp, 3450RPM, 115VAC MPN:WD32C1JHC
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1930858
WashdownMotor, 1-1/2hp, 3450RPM, 115VAC
The Washdown Motor is a reliable and efficient solution for a variety of applications, including food processing, pharmaceutical, and chemical manufacturing. With its 1.5 horsepower capacity and 3,450 RPM speed, this motor is ideal for use in washdown environments where high sanitation standards are required. Its totally enclosed fan-cooled design and Class F insulation ensure long-lasting performance in demanding conditions. The motor's compact 56HC frame and removable base make it easy to install and maintain, reducing downtime and increasing productivity. Perfect for use in high-temperature and high-humidity areas, this motor is a valuable addition to any industrial operation.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean environment for the motor.
- Capacitor-Start motor design allows for efficient starting and operation.
- Continuous duty cycle enables the motor to operate for extended periods without interruption.
Top product applications:
- Industrial Laundry Equipment
- Commercial Food Processing Machinery
- Water Treatment Plant Equipment
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 14.6/8.1-7.4 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 6, 2026 1:02pm UTC
Category: Motors
