WashdownMotor, 1-1/2hp, 208-230/460VAC MPN:WD32P1AC
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G1930681
WashdownMotor, 1-1/2hp, 208-230/460VAC

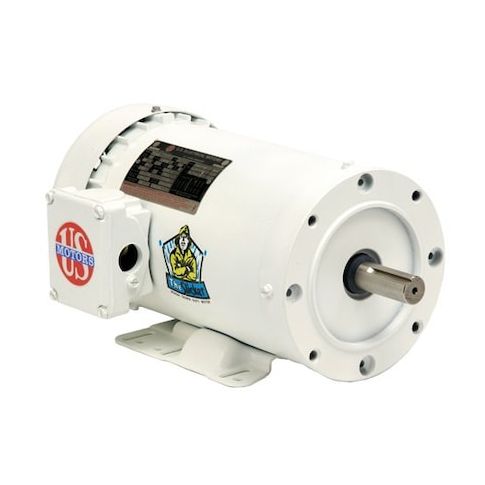

This 1.5 horsepower Washdown Motor from US Motors is designed for harsh environments, featuring a totally enclosed non-ventilated (TEFC) enclosure that protects against dust and water. Suitable for continuous duty cycles, it operates at 3,450 RPM and can handle a wide range of voltages, including 208-230/460V AC. The motor's compact size and lightweight design make it ideal for use in industrial settings, such as food processing, chemical plants, and pharmaceutical facilities. With a high service factor of 1.2, this motor provides reliable performance and extended lifespan, making it a valuable addition to any washdown application.
Top product features:
- Three-phase design
- Totally enclosed non-ventilated enclosure
- Continuous duty cycle
Top product applications:
- Food Processing Machinery
- Pumps and Compressors
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.3-4.1/2.1 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 10.50
- Package Height: 10.60
- Package Weight: 41.05
Product info last updated on March 29, 2026 6:21pm UTC
Category: Motors
