GeneralPurposeMotor, 1/4hp, 1725RPM, 48 MPN:T14B2N49
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1929220

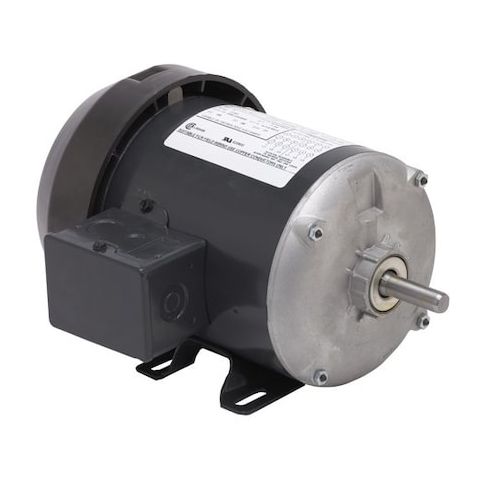

GeneralPurposeMotor, 1/4hp, 1725RPM, 48
This 1/4 hp, 1725 RPM General Purpose Motor from US Motors is a reliable and efficient solution for a wide range of applications. Suitable for use in 115V AC environments, this motor is ideal for industrial settings, such as conveyor systems, pumps, and fans. Its totally enclosed fan-cooled design ensures optimal performance and longevity, while its continuous duty cycle and Class B insulation provide added peace of mind. With a compact 48 frame size, this motor is easy to integrate into existing systems, making it a versatile and cost-effective choice for various industrial and commercial applications.
Top product features:
- Single Phase operation
- Totally Enclosed Fan Cooled design
- Continuous Duty Cycle operation
Top product applications:
- Pumps and water circulation systems
- Fans and ventilation systems
- Conveyors and material handling equipment
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4.4 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.30
- Package Width: 9.40
- Package Height: 9.50
- Package Weight: 16.55
Product info last updated on January 30, 2026 8:48pm UTC
Category: Motors
