Pump Motor, C-Face, 56J MPN:EU3002
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1928916

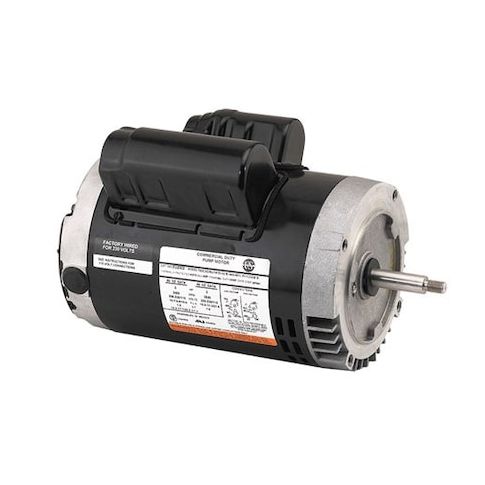

Pump Motor, C-Face, 56J
This 3 HP single-phase motor from US Motors is designed for continuous duty cycles and is ideal for pump applications. With a 56J frame and open dripproof enclosure, it provides reliable performance in a variety of settings. The motor's capacitor-start/run design and ball bearings ensure efficient operation and extended lifespan. Its standard efficient design and inverter-rated capability make it suitable for a range of applications, including industrial and commercial use. With a compact design and easy installation, this motor is a cost-effective solution for any pump-based system, providing reliable and efficient operation in temperatures up to 104°F.
Top product features:
- It has a continuous duty cycle, allowing for constant operation without interruption.
- It is designed for use with pumps, making it suitable for applications that require reliable fluid circulation.
- It has ball bearings, which provide smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pump
- Motor Application Pump
- Motor Application Pump
Pump Motor, Bolt Circle Dia. 3/8 in, Conduit Box Location Exterior, Conduit Box Position F3, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 14.0-12.8, Height 8 1/2 in, HP 3, Ins. Class B, Inverter Rated No, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 15.7-14.2 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 10.60
- Package Height: 10.90
- Package Weight: 37.90
Product info last updated on March 8, 2026 5:36am UTC
Category: Motors
