GeneralPurposeMotor, 1-1/2hp, 3450RPM, 56H MPN:T32C1JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1928688

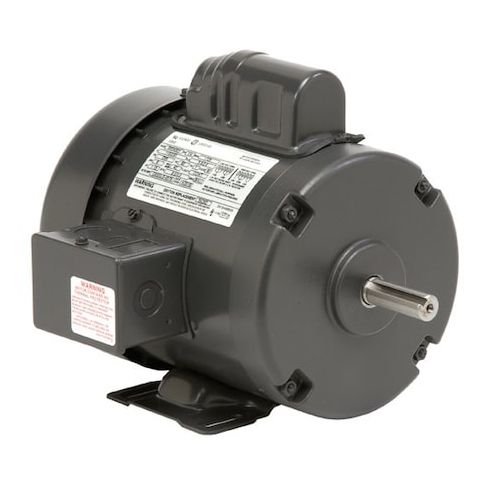

GeneralPurposeMotor, 1-1/2hp, 3450RPM, 56H
This 1-1/2 horsepower General Purpose Motor from US Motors is a reliable and efficient solution for a variety of applications. Designed for single-phase use, it features a capacitor-start motor design and operates at 3450 RPM. Suitable for use at 208V, this motor is ideal for industrial settings and can handle continuous duty cycles. Its totally enclosed fan-cooled design and Class B insulation ensure safe and reliable operation in temperatures up to 40°C. Perfect for applications such as conveyor systems, pumps, and fans, this motor offers a cost-effective and durable solution for a range of industries.
Top product features:
- Totally Enclosed Fan Cooled design provides increased protection against dust and moisture.
- Capacitor-Start motor design enables efficient starting and operation.
- Single Phase operation allows for use in a variety of applications.
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for industrial ventilation systems
- Industrial machinery and equipment, such as conveyor belts and mixers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 7, 2026 3:42pm UTC
Category: Motors
