Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56H Frame, 115/230V AC Voltage MPN:D1CP1PH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100980537

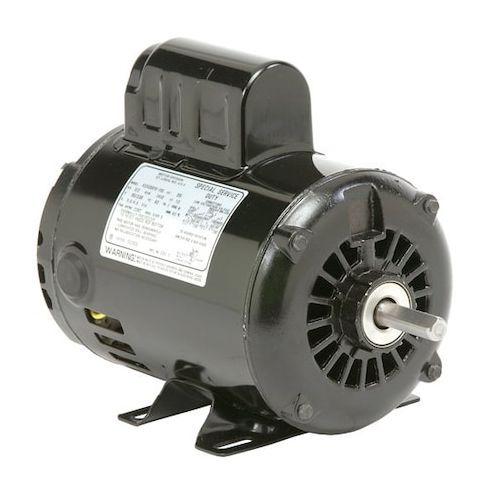

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 56H Frame, 115/230V AC Voltage
The US Motors Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, this motor delivers 1 hp of power at 3,450 RPM, making it ideal for industrial and commercial settings. Its continuous duty cycle and open drip-proof design ensure reliable operation in harsh conditions. With a 1.25 service factor and a maximum ambient temperature of 40 degrees C, this motor is perfect for applications requiring high performance and durability, such as conveyor systems, pumps, and fans. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Capacitor-start/run design for efficient operation
- Single-phase motor for general-purpose applications
- Open drip-proof enclosure for protection from debris and liquids
Top product applications:
- Industrial conveyor belt systems
- Pumps and water treatment plants
- Manufacturing machinery
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.3/4.3 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 29.00
