Capacitor-Start Belt Drive Motor, 1 1/2 HP, 56H Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM MPN:T32CM1JH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G100721673
Capacitor-Start Belt Drive Motor, 1 1/2 HP, 56H Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM

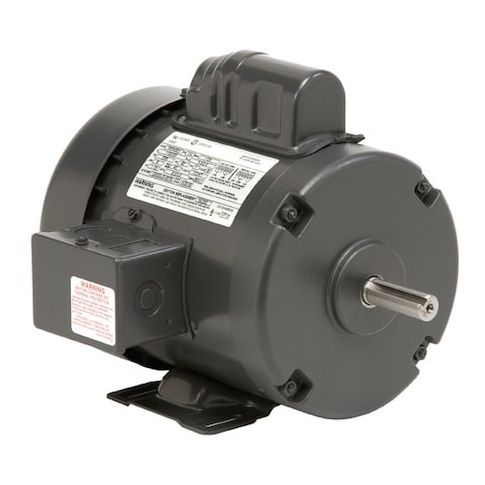

This 1.5 HP capacitor-start belt drive motor from US Motors is a reliable and efficient solution for a variety of applications, including fans and blowers. With a nameplate RPM of 3,450 and a 56H frame, it can handle continuous duty cycles in temperatures up to 40°C. The motor is designed for single-phase operation and can be used at 115/208-230V AC voltage. Its compact design and totally enclosed fan-cooled enclosure make it ideal for applications where space is limited. The motor's high service factor and manual thermal protection ensure long-lasting performance and reliability.
Top product features:
- Totally Enclosed Fan Cooled design for protection from dust and moisture
- Manual Thermal Protection for safe operation in case of overheating
- Continuous Duty Cycle for consistent and reliable performance
Top product applications:
- Ventilation systems for small to medium-sized commercial buildings
- Industrial air compressors
- Dust collection systems for woodworking and metalworking applications
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 14.6/8.1-7.4 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on January 31, 2026 10:02pm UTC
Category: Motors
