Motor, 40HP, 1760RPM, 230/460V, 60HZ MPN:DH40S2BF
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0921241

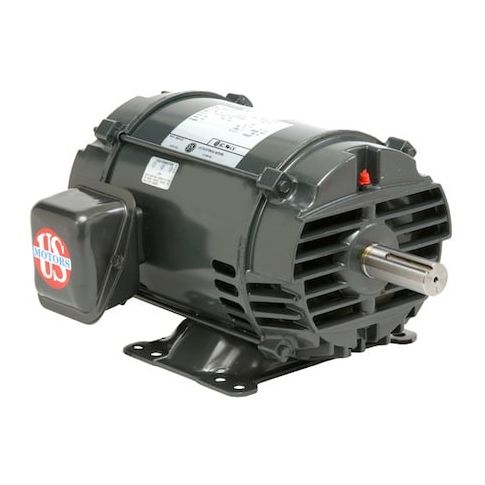

Motor, 40HP, 1760RPM, 230/460V, 60HZ
This 40HP motor from US Motors is designed for intermittent duty cycles in elevator applications where dry hydraulic motors are required, typically in buildings up to five stories. Its open dripproof enclosure and ball bearings ensure reliable operation in harsh environments. With a 230/460V, 60HZ rating, this motor provides efficient power transmission. Its compact design, measuring 20.5 inches in length, makes it a suitable choice for space-constrained installations. The motor's country of origin is Mexico, and it is available for drop shipment with a lead time of 15 days.
Top product features:
- Operates at 1760 RPM for high-speed applications
- Features a 40HP rating for heavy-duty use
- Has a Ball Bearing design for smooth and long-lasting operation
Top product applications:
- Elevators where Dry Hydraulic Motors are Required
- Usually Five Stories or Less
- Motor Application for Elevators
Pump Motor, Bearing Protection Shaft Shields, Body Dia. 12.4 in, Conduit Box Position F1, Duty Cycle Intermittent, Frame 286T, Hz 60 Hz, Full Load Amps 96.0/48.0, Height 15 7/16 in, HP 40, Ins. Class F, Lead Length 72 in, Length Less Shaft 20 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Elevators where Dry Hydraulic Motors are Require, Usually Five Stories or Less, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.50
- Package Height: 19.50
- Package Weight: 262.00
Product info last updated on February 1, 2026 11:00am UTC
Category: Motors
