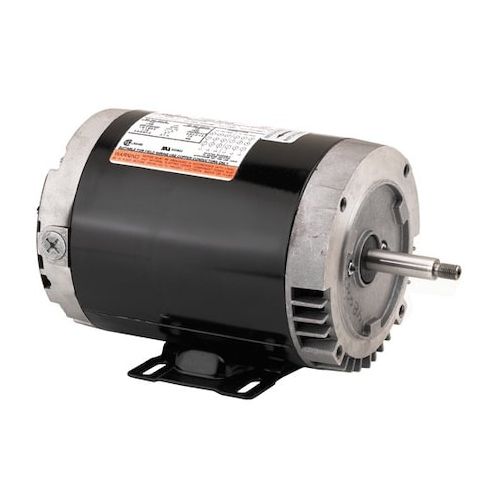

Motor, 3HP, 3450, 2850RPM, 208-230/460V, ODP MPN:EE734B
Motor, 3HP, 3450, 2850RPM, 208-230/460V, ODP
Motor, Bearing Protection Double Shields, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 8.6-8.4/4.2, Full Load Amps @ 50Hz 8.6-8.4/4.2, Height 6 3/4 in, HP 3, HP @ 50Hz 3, Ins. Class F, Length Less Shaft 11 5/16 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 9.6-9.4/4.7, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 10.40
- Package Height: 10.60
- Package Weight: 40.00
Product info last updated on February 1, 2026 12:56am UTC
Category: Motors
