Motor, 3/4HP, 1625/3SPD, 208-230V, 60HZ, 48Y MPN:NA1074
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0920611

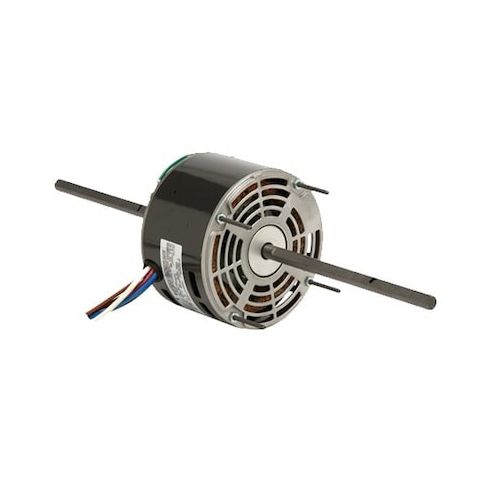

Motor, 3/4HP, 1625/3SPD, 208-230V, 60HZ, 48Y
This 3/4 HP, single-phase fan and blower motor from US Motors is designed for a wide range of applications, including commercial and industrial ventilation systems. With a permanent split capacitor design and 3 speeds, this motor provides reliable and efficient operation in environments up to 40°C. Its compact 48Y frame and open air-over design make it ideal for installations with limited space. The motor's continuous duty cycle and auto thermal protection ensure long-lasting performance. Suitable for use in restaurants, offices, and other commercial spaces, this motor provides a cost-effective solution for heating and cooling applications.
Top product features:
- Permanent Split Capacitor motor design for reliable operation
- 3-speed motor for adjustable airflow control
- Continuous duty cycle for sustained performance in demanding applications
Top product applications:
- HVAC systems for residential and commercial use
- Industrial ventilation systems for factories and warehouses
- Fans for agricultural applications, such as drying crops or ventilating livestock enclosures
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 208-230V AC, 4.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Stud, Motor Frame Material Steel, Shaft Length 6 1/4 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 18.01
Product info last updated on January 14, 2026 12:34pm UTC
Category: Motors
