Condenser Fan Motor, 3/4 hp MPN:5489
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0920340

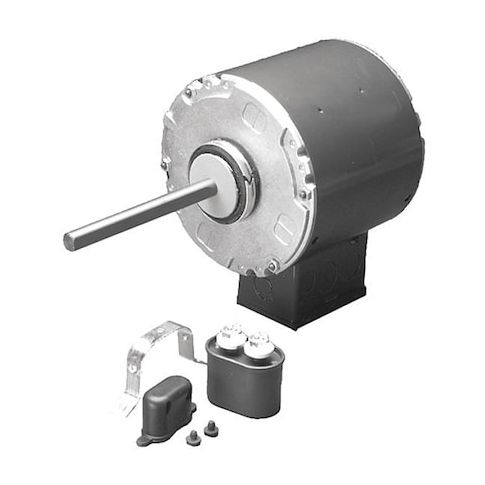

Condenser Fan Motor, 3/4 hp
Upgrade your HVAC/R system with the reliable US Motors Condenser Fan Motor. This 3/4 hp motor delivers efficient performance at 1075 RPM, making it ideal for various applications such as air conditioning units, chillers, and heat pumps. Its permanent split capacitor design and single-phase operation ensure smooth and quiet operation. The totally enclosed air-over design provides protection from dust and moisture, extending the motor's lifespan. With its compact 48 frame and all-angle mounting position, this motor is perfect for tight spaces and flexible installation options. Upgrade your system with the reliability and efficiency of the US Motors Condenser Fan Motor.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and debris.
- Permanent Split Capacitor motor design offers high efficiency and reliability.
- Single-phase operation allows for easy installation and reduced complexity.
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Refrigeration Systems
Motor,3/4HP,1075RPM,208-230/460V,48Y, Motor Design Permanent Split Capacitor, Phase Single, 3/4 HP, No. of Speeds 1, Voltage 208-230/460V AC, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Band Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 5 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, 60 Hz, Full Load Amps 5.0/2.5 A, Ins. Class B, Motor Service Factor 1
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 8.30
- Package Height: 7.10
- Package Weight: 20.75
Product info last updated on January 14, 2026 12:33pm UTC
Category: Motors
