Motor, 2HP, 1140RPM, 208-230/460V, 56YZ MPN:8987VG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0919674

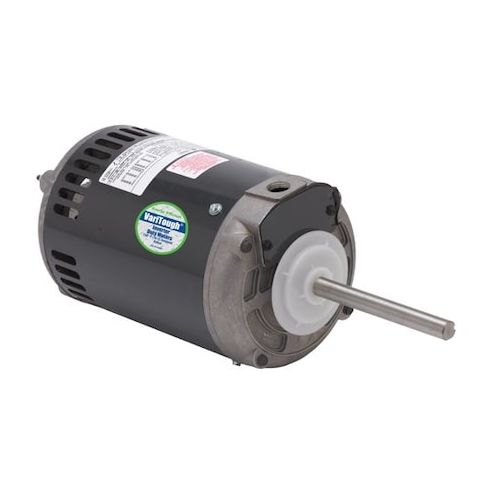

Motor, 2HP, 1140RPM, 208-230/460V, 56YZ
This 2HP, 1140RPM, three-phase condenser fan motor from US Motors is designed for efficient and reliable operation in a variety of applications, including HVAC, industrial ventilation, and commercial refrigeration. With a 56YZ frame and open drip-proof enclosure, this motor provides a compact and durable solution for condenser fan applications. Its 208-230/460V rating and 7.8-7.8/3.9A full load amps make it suitable for use in a range of voltage and current configurations. The motor's 1 service factor and T-Stat thermal protection ensure reliable operation in demanding environments, making it an ideal choice for industrial and commercial applications.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof enclosure design for protection against dust and moisture
- Motor shaft rotation in both clockwise and counterclockwise directions for flexibility in installation
Top product applications:
- Air Conditioning Units
- Commercial Refrigeration Systems
- HVAC Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.8-7.8/3.9 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Belly Band, Motor Frame Material Steel, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Length 6 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 11.50
- Package Height: 12.00
- Package Weight: 48.00
Product info last updated on January 16, 2026 5:36am UTC
Category: Motors
