Condenser Fan Motor, 1 hp MPN:4933
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0918852

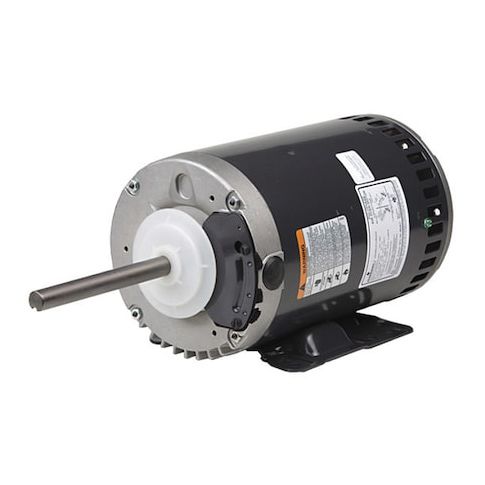

Condenser Fan Motor, 1 hp
This 1 HP condenser fan motor from US Motors is a reliable and efficient solution for HVAC/R applications. Designed for 3-phase operation, it provides a maximum of 1140 RPM and 1.6 amps at full load, making it suitable for a variety of uses. The motor's open dripproof enclosure and ball bearings ensure durability and long lifespan. Its compact design allows for easy installation in tight spaces. With a maximum ambient temperature of 60°C, this motor can handle demanding applications. Its use in HVAC/R systems can help improve air quality, reduce energy consumption, and increase system efficiency.
Top product features:
- Operates at 1140 RPM for efficient cooling
- Has a 1/2 inch diameter shaft for secure mounting
- Features ball bearings for reduced motor wear and increased lifespan
Top product applications:
- HVAC/R systems
- Commercial air conditioning units
- Commercial heating units
Motor,1HP,1140RPM,575V,60HZ,56,ODP, Motor Design 3-Phase, Phase Three, 1 HP, No. of Speeds 1, Voltage 575V AC, Motor Shaft Rotation CCW, 56 Frame, Motor Enclosure Design Open Dripproof, Band Motor Mounting Type, Motor Mounting Position Vertical Shaft Up, Shaft Dia. 1/2 in, Shaft Length 5 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,140, HVAC/R, 60 Hz, Full Load Amps 1.6 A, Ins. Class B, Motor Bearings Ball, Overall Length 10 7/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 13.50
- Package Height: 12.00
- Package Weight: 1.00
Product info last updated on January 14, 2026 12:27pm UTC
Category: Motors
