Motor, 1-1/2HP, 830, 700RPM, 208-230/460V MPN:1219
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0918484

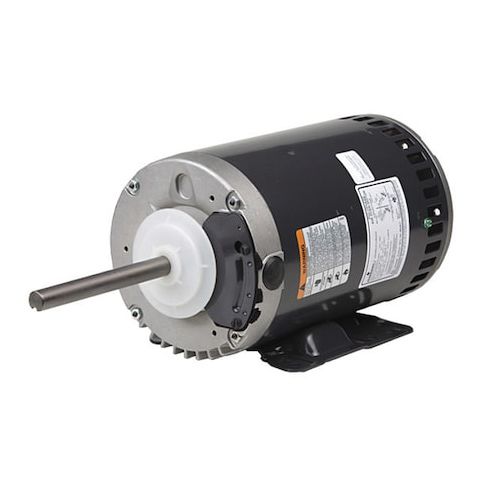

Motor, 1-1/2HP, 830, 700RPM, 208-230/460V
This 1.5HP three-phase condenser fan motor from US Motors is designed for heavy-duty applications, providing reliable operation in a variety of environments. With a high RPM of 830, it efficiently moves air and promotes cooling in commercial and industrial settings. The motor's totally enclosed air-over design and steel frame ensure durability and resistance to dust and moisture. Suitable for vertical shaft mounting, this motor is ideal for use in rooftop units, air handling systems, and other HVAC applications where high airflow is critical. Its compact size and robust construction make it a reliable choice for demanding environments.
Top product features:
- Three-phase design
- Totally enclosed air-over motor enclosure
- 56Z frame design
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Refrigeration Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 830 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 6.6/3.3 A Full Load Amps, 56Z Frame, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel, Motor Mounting Position Vertical Shaft Up, Shaft Length 2 in, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 43.00
Product info last updated on February 7, 2026 8:37am UTC
Category: Motors
