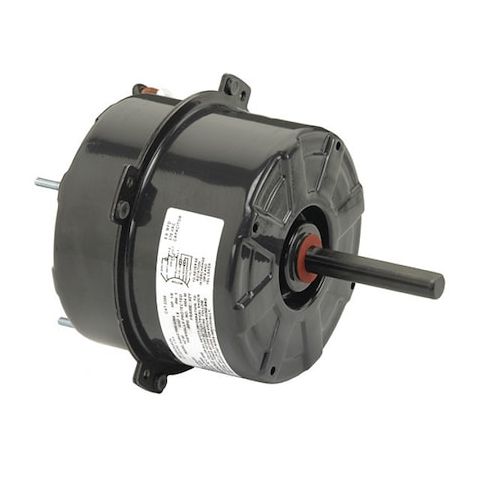

Motor, 1/8HP, 1075RPM, 60HZ, 208-230V MPN:2249
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0917714
Motor, 1/8HP, 1075RPM, 60HZ, 208-230V
This 1/8 HP, 1075RPM condenser fan motor from US Motors is a reliable and efficient choice for a variety of applications. Suitable for use in residential and commercial HVAC systems, this motor features a permanent split capacitor design for smooth and quiet operation. Its totally enclosed air-over design provides protection from dust and moisture, while its steel frame and stud mounting ensure durability and easy installation. With a maximum ambient temperature of 40°C and auto thermal protection, this motor is designed to provide reliable performance in a range of environments, making it an ideal choice for contractors and builders.
Top product features:
- 1/8HP motor provides a low power consumption for energy efficiency.
- Permanent Split Capacitor motor design allows for a single speed operation with reduced vibration.
- Totally Enclosed Air-Over motor enclosure protects the motor from dust and debris for a longer lifespan.
Top product applications:
- HVAC systems
- Condenser units
- Packaged rooftop units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.9 A Full Load Amps, 42 Frame, 60 Hz Hz, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position Vertical Shaft Down, Shaft Length 2 3/4 in, Lead Length 42 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.70
- Package Width: 6.50
- Package Height: 7.00
- Package Weight: 8.55
Product info last updated on January 14, 2026 5:00pm UTC
Category: Motors
