Motor, 1/6HP, 1550RPM, 208-230V, 60HZ MPN:1527P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0917565

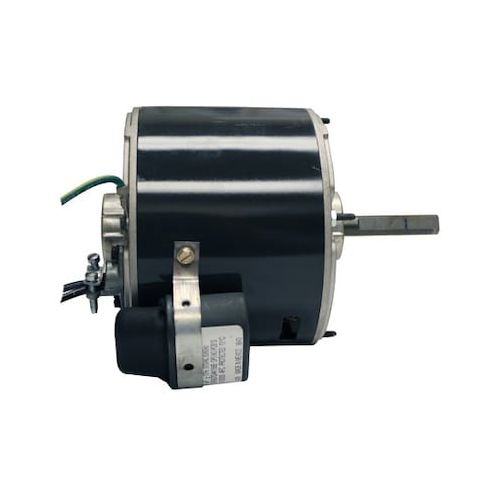

Motor, 1/6HP, 1550RPM, 208-230V, 60HZ
This 1/6HP, 1550RPM motor from US Motors is designed for a wide range of applications, including fan and blower motors. With a permanent split capacitor design, it provides reliable operation and efficient performance. The motor is suitable for use in environments with a maximum ambient temperature of 40°C, making it ideal for industrial and commercial settings. Its compact size and open-air design make it easy to integrate into existing systems. The motor's single-phase operation and 100W output make it a great choice for applications such as ventilation systems, air circulation, and exhaust fans.
Top product features:
- Permanent Split Capacitor motor design
- Rotates at 1550 RPM
- Has a maximum ambient temperature of 40 Degrees C
Top product applications:
- HVAC systems
- Industrial ventilation systems
- Automotive repair shops
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.4 A Full Load Amps, 56Z Frame, Output Watts 100 W, 60 Hz Hz, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Motor Frame Material Steel, Shaft Length 2 15/16 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 8.50
- Package Height: 9.00
- Package Weight: 19.45
Product info last updated on February 28, 2026 1:03pm UTC
Category: Motors
