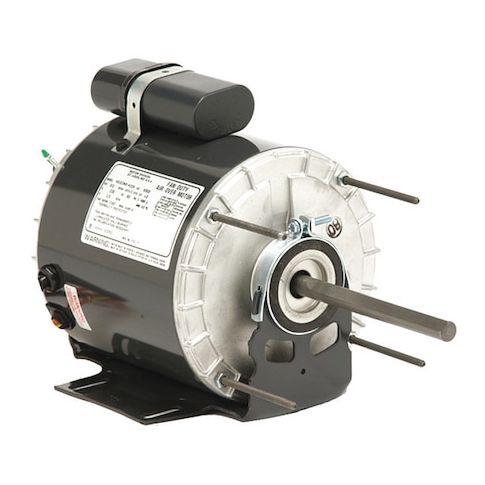

Motor, 1/6HP, 1625RPM, 115V, 60HZ, 48Z
This 1/6HP, 115V motor from US Motors is a reliable and efficient solution for a variety of applications, including unit heaters and other single-phase equipment. With a permanent split capacitor design and continuous duty cycle, it can operate in temperatures up to 40°C, making it ideal for use in commercial and industrial settings. Its totally enclosed air-over design provides protection from dust and moisture, ensuring long motor life. The motor's compact cradle base design makes it easy to install and mount, making it a great choice for a wide range of applications, including HVAC and industrial processes.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure provides a safe and protected environment for the motor.
- Single Phase Permanent Split Capacitor Motor Design allows for efficient and reliable operation.
- Continuous Duty Cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Industrial Air Handling Systems
- Commercial Building Heating Systems
- Factory Floor Heating Systems
Unit Heater Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115V AC, 2.5 A Full Load Amps, 48Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 11.49
