Motor, 1/6HP, 1075/4SPD, 208-230V, 60HZ MPN:5826
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0917452

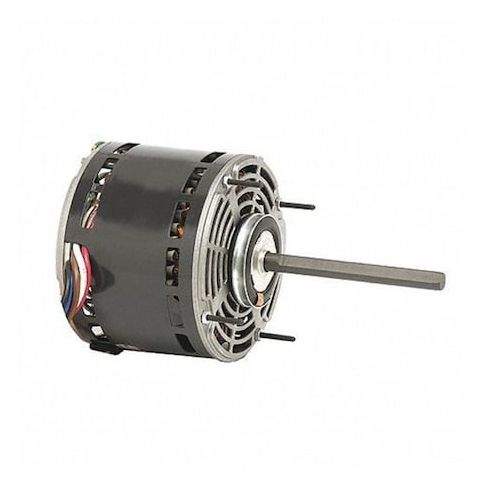

Motor, 1/6HP, 1075/4SPD, 208-230V, 60HZ
This high-performance 1/6HP motor from US Motors is ideal for a variety of applications, including industrial ventilation, HVAC systems, and commercial fan installations. With a permanent split capacitor design and 1,075 RPM nameplate speed, it provides reliable and efficient operation. The motor features a 4-speed configuration, allowing for precise control over airflow and pressure. Its compact 48Y frame and open air over design make it easy to integrate into existing systems. Suitable for continuous duty cycles in temperatures up to 40°C, this motor is a reliable choice for demanding industrial and commercial applications.
Top product features:
- Permanent Split Capacitor motor design for efficient operation
- Four speed settings for adjustable performance
- Continuous duty cycle for prolonged use without overheating
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial ventilation systems for factories and warehouses
- Commercial kitchen exhaust fans for restaurants and food service establishments
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 208-230V AC, 1.1-1.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Stud, Motor Frame Material Steel, Shaft Length 6 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 52 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 8.25
- Package Height: 7.00
- Package Weight: 18.10
Product info last updated on February 25, 2026 11:43pm UTC
Category: HVAC Parts
