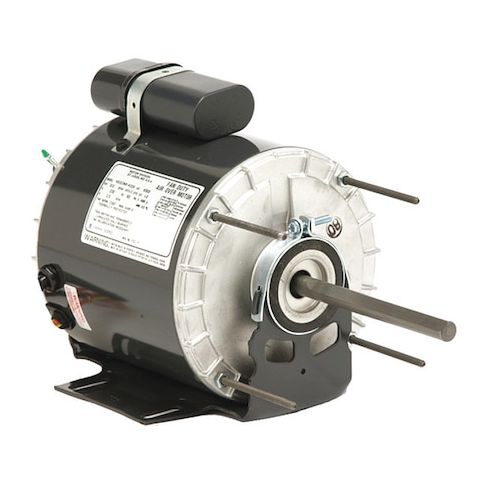

Motor, 1/6HP, 1075RPM, 115V, 60HZ, 48Z MPN:1386
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0917434
Motor, 1/6HP, 1075RPM, 115V, 60HZ, 48Z
This 1/6HP motor from US Motors is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, it operates at 115V and 60HZ, providing a consistent and quiet performance. With a permanent split capacitor design, it offers a long lifespan and low maintenance requirements. Ideal for fans and blower motor applications, it can handle continuous duty cycles and operates at a maximum ambient temperature of 40°C. Its compact design and cradle base mounting make it easy to integrate into a variety of settings, including residential and commercial environments.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design provides protection from environmental factors
- Motor Design Permanent Split Capacitor allows for single-phase operation
- Continuous Duty Cycle enables continuous operation without overheating
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial ventilation systems for factories and warehouses
- Computer server rooms and data centers for climate control
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115V AC, 2.6 A Full Load Amps, 48Z Frame, Output Watts 100 W, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Shaft Length 3 5/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 12.32
Product info last updated on February 3, 2026 9:26pm UTC
Category: Motors
