Belt Drive Motor, 1 Speed, Open Drip Proof, 1/4 HP, 1, 725, 48 Frame, Auto, Nameplate RPM MPN:840CV
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0916962

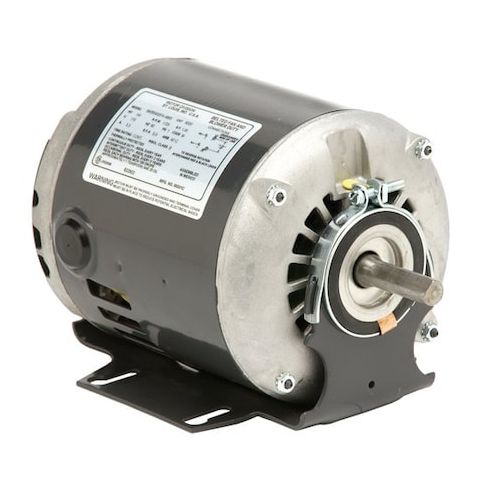

Belt Drive Motor, 1 Speed, Open Drip Proof, 1/4 HP, 1, 725, 48 Frame, Auto, Nameplate RPM
This 1/4 HP belt drive motor is a reliable and efficient solution for various applications, including fans and blowers. Its 1,725 RPM nameplate speed and single-phase design make it suitable for use in a range of settings, from residential to commercial environments. The motor's open drip-proof enclosure and cradle base mounting type provide easy installation and maintenance. With a service factor of 1.35 and thermal protection, this motor is designed to withstand demanding conditions. Its compact size and lightweight design also make it ideal for applications where space is limited, such as in HVAC systems and industrial settings.
Top product features:
- 1 Speed operation allows for simplified control and reduced complexity.
- Split-Phase motor design provides efficient operation and reliable performance.
- Auto thermal protection ensures motor safety and extends lifespan.
Top product applications:
- Industrial Laundry Equipment
- Air Handling Units
- Commercial Refrigeration Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 5.3 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Shaft Length 1 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 9.30
- Package Height: 9.70
- Package Weight: 6.65
