Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:PD6002
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0916929

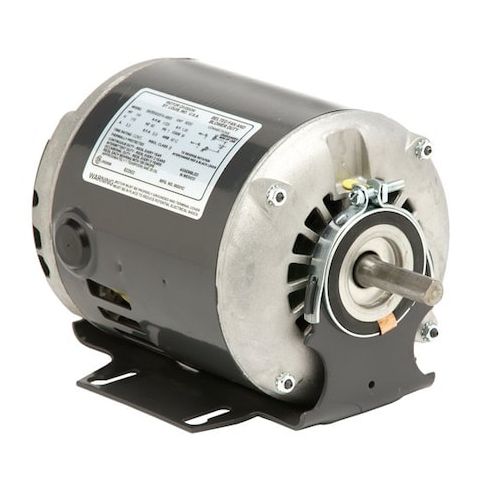

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This high-performance Split-Phase Belt Drive Motor from US Motors is ideal for a variety of applications, including fans and blowers, where reliable and efficient operation is crucial. With a 1/4 HP rating and 1,725 nameplate RPM, this motor delivers consistent power and speed, while its 48 frame size and open drip-proof enclosure make it easy to install and maintain. Suitable for use at 115/208-230V AC, this motor is perfect for commercial and industrial settings, offering a service factor of 1.35 and thermal protection for added reliability. Its compact size and cradle base mounting make it a versatile solution for a range of applications.
Top product features:
- Split-phase motor design for efficient operation
- Belt drive design for reduced vibration and increased reliability
- Automatic thermal protection for safe operation in various environments
Top product applications:
- HVAC Fan Motor
- Pump Motor
- Conveyor Motor
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.2/2.5-2.6 A Full Load Amps, 48Z Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Shaft Length 2 1/4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 8.13
- Package Weight: 22.00
Product info last updated on March 6, 2026 7:58pm UTC
Category: Motors
