Condenser Fan Motor, Stud MPN:1874H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0916402
Condenser Fan Motor, Stud

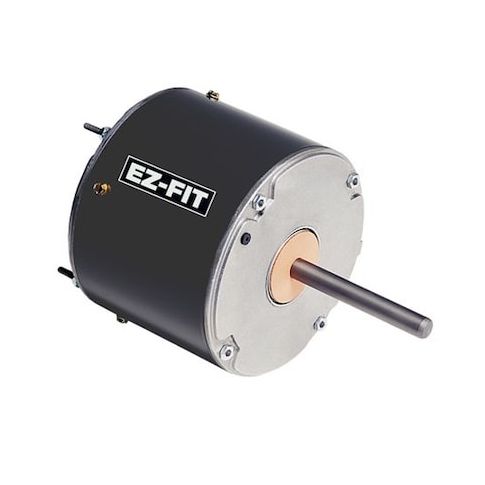

This 1/4 HP condenser fan motor from US Motors is designed for reliable operation in HVAC/R applications. With a permanent split capacitor design and single-phase operation, it provides efficient cooling for condenser fans. The motor features a totally enclosed air-over design for protection from dust and moisture, and auto thermal protection for added safety. Its compact 48 frame size makes it ideal for space-constrained installations. With a maximum ambient temperature of 70°C and a nameplate RPM of 825, this motor is suitable for a wide range of condenser fan applications, including residential and commercial HVAC systems.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure
- Single-phase operation
Top product applications:
- HVAC/R
- Condenser Fan
- Air Conditioning Systems
Motor,1/4,1/8HP,825RPM,208-230V,60HZ, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CCW, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 825, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 2.1 A, Ins. Class F, Motor Service Factor 1
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 11.35
Product info last updated on February 15, 2026 8:51am UTC
Category: Motors
