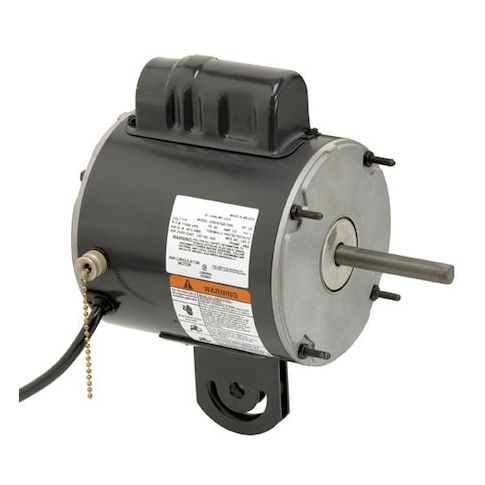

Farm Duty Motor, 3-Phase, 1/3 HP, 115/230V AC, 1, 700 Nameplate RPM, 48Z Frame MPN:FD13AA2P4Z9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0916089
Farm Duty Motor, 3-Phase, 1/3 HP, 115/230V AC, 1, 700 Nameplate RPM, 48Z Frame
This 1/3 HP, 3-phase farm duty motor is designed for heavy-duty applications in agricultural settings, providing reliable performance in harsh environments. Suitable for continuous duty cycles, it operates at 1,700 RPM and can handle a maximum ambient temperature of 40 degrees C. With a totally enclosed air-over design and resilient ring mounting, it offers protection from dust and moisture. Ideal for irrigation systems, pumps, and other equipment, this motor provides efficient power for a variety of farm and ranch applications, ensuring smooth operation and extending the lifespan of connected machinery.
Top product features:
- Three-phase operation
- Totally enclosed air-over design
- Continuous duty cycle
Top product applications:
- Pumping water or chemicals in irrigation systems
- Powering small machinery on farms or ranches
- Operating conveyor belts in agricultural or manufacturing settings
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48Z Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Resilient Ring, Motor Frame Material Steel, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 8.90
- Package Height: 10.80
- Package Weight: 18.89
Product info last updated on January 31, 2026 6:57am UTC
Category: Motors
