Motor, 1/3HP, 1075RPM, 208-230V, 60HZ, FLA2.0 MPN:1861
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0915702

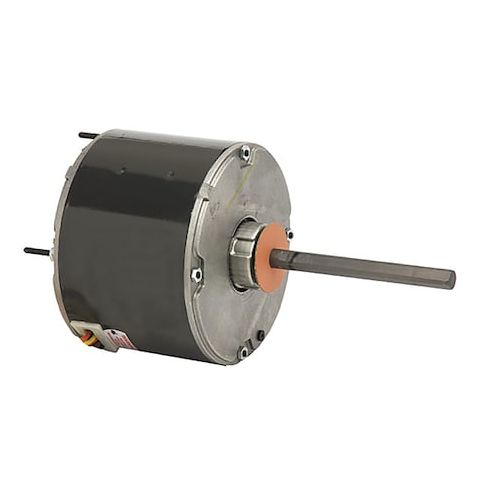

Motor, 1/3HP, 1075RPM, 208-230V, 60HZ, FLA2.0
This 1/3HP, 1075RPM condenser fan motor from US Motors is designed for single-phase applications, providing reliable and efficient operation in a variety of settings. With a permanent split capacitor design and totally enclosed air-over enclosure, it offers protection against dust and moisture, making it ideal for use in harsh environments. Its compact size and all-angle mounting capability make it easy to integrate into existing systems, while its high torque output ensures reliable operation even under heavy loads. Suitable for use in air conditioning, ventilation, and heating systems, this motor is a reliable choice for commercial and industrial applications.
Top product features:
- Totally Enclosed Air-Over design provides a safe and protected environment for the motor.
- Single Phase operation allows for efficient and cost-effective power usage.
- Permanent Split Capacitor motor design enables reliable and smooth operation.
Top product applications:
- HVAC Systems
- Air Handling Units
- Condenser Fans
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Stud, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 4 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 7.10
- Package Height: 6.90
- Package Weight: 14.05
