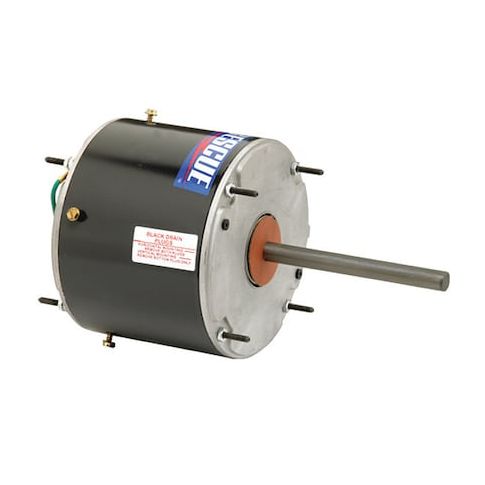

Motor, 1/3, 1/6HP, 1075RPM, 208-230V, 60HZ, 6P MPN:5462
Motor, 1/3, 1/6HP, 1075RPM, 208-230V, 60HZ, 6P
This 1/3 horsepower condenser fan motor from US Motors is designed for reliable operation in a variety of applications, including residential and commercial HVAC systems. With a permanent split capacitor design and single-phase operation, it's easy to integrate into existing systems. The motor's high efficiency and low amp draw reduce energy costs and minimize heat buildup, extending its lifespan. Its compact size and sturdy construction make it ideal for use in tight spaces, and its totally enclosed air-over design protects against dust and moisture. Suitable for use in temperatures up to 60°C, it's a reliable choice for demanding applications.
Top product features:
- Operates at 1075RPM for efficient performance
- Provides 1/3 horsepower for handling moderate loads
- Has a permanent split capacitor design for reliable operation
Top product applications:
- Air Conditioning Units
- HVAC Systems
- Condenser Fans
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 208-230V AC, 2.6/1.8 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel, Shaft Length 5 in, Lead Length 30 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 7.10
- Package Height: 6.80
- Package Weight: 13.90
Product info last updated on February 15, 2026 1:06am UTC
Category: Motors
