Motor, 1/2HP, 575, 475RPM, 208-230/460V

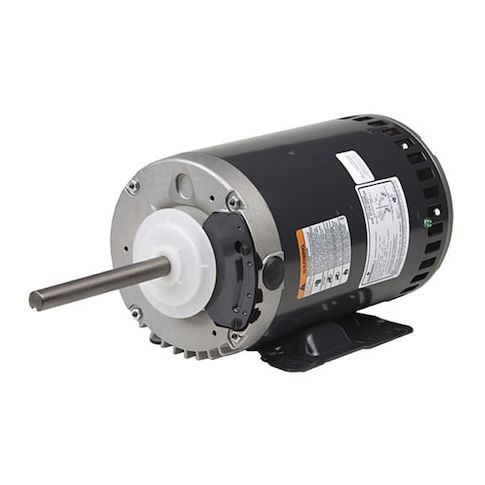

This 1/2 HP three-phase condenser fan motor from US Motors is designed for heavy-duty applications, offering efficient cooling and reliable operation. Suitable for use in industrial settings, it provides a high level of performance in a compact package. The motor's robust design and totally enclosed air-over enclosure ensure durability and protection from the elements. With a range of voltage options and a high service factor, this motor is ideal for use in commercial and industrial HVAC systems, as well as in manufacturing and processing facilities. Its compact size and easy installation make it a convenient choice for many applications.
Top product features:
- Three-phase operation
- Totally enclosed air-over motor enclosure
- 56Y frame design
Top product applications:
- HVAC Systems
- Air-Handling Units
- Industrial Process Cooling Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 575 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.2-3.1/1.6 A Full Load Amps, 56Y Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel, Motor Mounting Position Vertical Shaft Up, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 21.35
