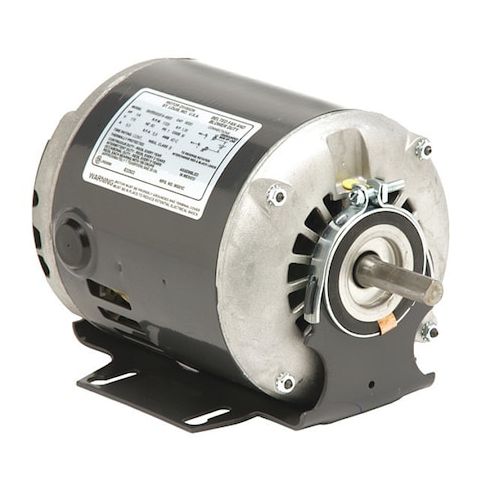

Split-Phase Belt Drive Motor, 1/2 HP, 48 Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:8200
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0914625
Split-Phase Belt Drive Motor, 1/2 HP, 48 Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This 1/2 HP Split-Phase Belt Drive Motor is a reliable and efficient solution for various applications, including fans and blowers. With a nameplate RPM of 1,725, it provides high-speed operation for demanding tasks. The motor's open drip-proof design and 1.25 service factor ensure reliable performance in harsh environments. Its compact 48Y frame and cradle base mounting make it easy to integrate into existing systems. Suitable for use in 115V AC applications, this motor is perfect for residential and commercial HVAC systems, as well as industrial ventilation and air handling systems. Its long lifespan and low maintenance needs make it a cost-effective choice.
Top product features:
- Split-phase motor design for efficient operation
- Single-phase AC voltage compatibility for widespread use
- Auto thermal protection for motor safety and reliability
Top product applications:
- HVAC Systems
- Industrial Fans
- Dust Collection Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 8.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Shaft Length 1 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.30
- Package Width: 9.30
- Package Height: 9.50
- Package Weight: 17.30
Product info last updated on January 27, 2026 4:25am UTC
Category: Motors
