Motor, 1/2HP, 1140RPM, 575V, 60HZ, 56 MPN:4940
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0914442
Motor, 1/2HP, 1140RPM, 575V, 60HZ, 56

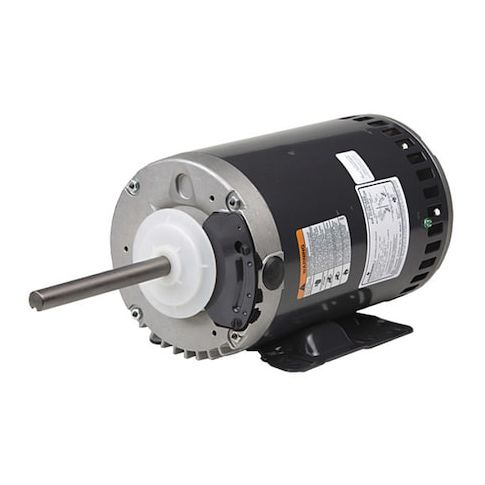

This 1/2HP, 1140RPM, 575V, 60HZ three-phase condenser fan motor from US Motors is designed for heavy-duty applications requiring efficient cooling. Its totally enclosed air-over design and steel frame ensure reliable operation in demanding environments. Ideal for use in HVAC systems, industrial ventilation, and commercial refrigeration, this motor provides consistent performance and long lifespan. With a service factor of 1.15 and automatic thermal protection, it can withstand high temperatures and heavy loads. Its compact size and belly band mounting make it easy to integrate into existing systems, making it a reliable and efficient solution for a wide range of industrial and commercial applications.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure provides protection from dust and moisture
- Three-Phase Motor Design allows for efficient power delivery and reduced energy consumption
- 1,140 RPM Motor Speed enables precise control and high-performance operation
Top product applications:
- HVAC Fan Motor
- Commercial Refrigeration Motor
- Industrial Ventilation Motor
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 575V AC, 0.85 A Full Load Amps, 56YZ Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel, Motor Mounting Position Vertical Shaft Up, Shaft Length 5 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 21.00
