Motor, 1/2HP, 1075RPM, 208-230V, 60HZ, TEAO MPN:1878
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0914232

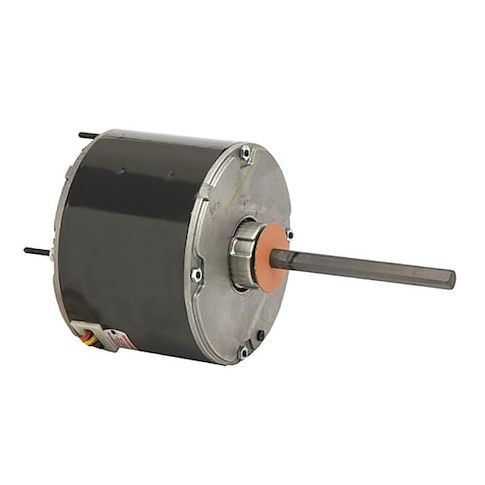

Motor, 1/2HP, 1075RPM, 208-230V, 60HZ, TEAO
This reliable 1/2HP condenser fan motor is designed for single-phase applications, offering a permanent split capacitor design for efficient operation. With a nameplate RPM of 1,075, it provides consistent performance in a variety of settings. Suitable for use in air conditioning, heating, and ventilation systems, this motor is built to withstand demanding conditions. Its totally enclosed air-over design and steel frame ensure durability and protection from dust and moisture. With a short lead time and available in quantities of one, this motor is an ideal choice for industries requiring efficient and reliable cooling solutions.
Top product features:
- Totally Enclosed Air-Over motor design provides a protective environment for internal components.
- Permanent Split Capacitor motor design allows for a single-speed operation with a high starting torque.
- Auto thermal protection feature automatically shuts off the motor in case of overheating.
Top product applications:
- Air Conditioning Systems
- Commercial Refrigeration Equipment
- HVAC Systems
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Stud, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 5 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 7.00
- Package Height: 7.20
- Package Weight: 16.15
Product info last updated on January 14, 2026 1:16pm UTC
Category: Motors
