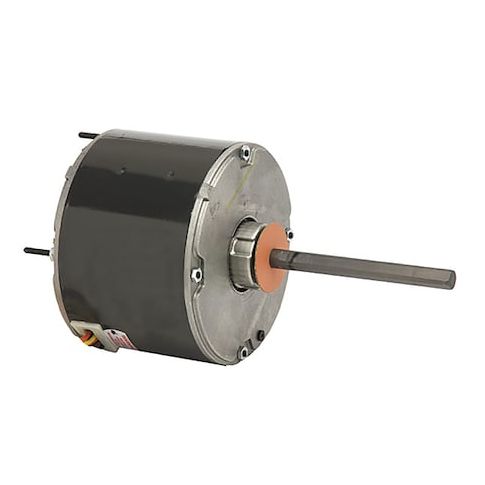

Motor, 1/2HP, 1075RPM, 208-230V, 48Y, TEAO MPN:1862
Motor, 1/2HP, 1075RPM, 208-230V, 48Y, TEAO
Boost your industrial operations with the US Motors 1/2HP Condenser Fan Motor. Engineered for single-phase applications, this reliable motor delivers 1,075 RPM with a permanent split capacitor design. Suitable for use in a variety of settings, including commercial and industrial facilities, it provides efficient cooling for condenser systems. With a durable steel frame and totally enclosed air-over design, this motor withstands harsh environments and minimizes maintenance needs. Its compact size and all-angle mounting capability make it easy to integrate into existing systems, ensuring seamless operation and maximum productivity. Ideal for applications where reliability and efficiency are paramount.
Top product features:
- Totally Enclosed Air-Over motor design provides protection from dust and debris
- Permanent Split Capacitor motor design allows for single-phase operation
- Motor has a 60 Hz frequency, suitable for use in a variety of applications
Top product applications:
- Air Conditioning Systems
- Industrial Fans and Ventilation Systems
- Commercial Refrigeration Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.1 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Stud, Motor Frame Material Steel, Motor Mounting Position All Angle, Shaft Length 4 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 7.10
- Package Height: 7.10
- Package Weight: 16.25
Product info last updated on January 16, 2026 9:06am UTC
Category: Motors
