Farm Duty Motor, Capacitor-Start, 5 HP, 208/230V AC, 1, 740 Nameplate RPM, 184TC Frame MPN:FDU5CM2K18C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408482
Farm Duty Motor, Capacitor-Start, 5 HP, 208/230V AC, 1, 740 Nameplate RPM, 184TC Frame

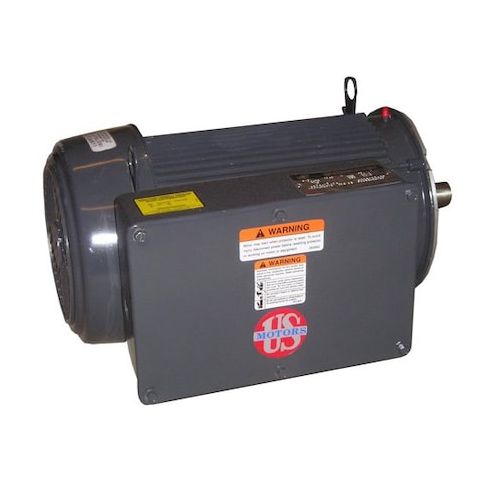

This US Motors Farm Duty Motor is designed for heavy-duty applications in agricultural settings, featuring a capacitor-start design for efficient power delivery. With a 5 HP rating and 1,740 RPM, it provides reliable performance in demanding conditions. The totally enclosed fan-cooled design ensures optimal cooling and protection from harsh environments. Suitable for continuous duty cycles, this motor is ideal for use in irrigation systems, grain handling equipment, and other agricultural machinery. Its durable construction and high service factor make it a reliable choice for farmers and contractors who require a rugged and dependable motor solution.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments.
- Motor Shaft Rotation is available in both clockwise and counterclockwise directions.
- Manual Thermal Protection allows for easy monitoring and maintenance of the motor's temperature.
Top product applications:
- Pump applications for irrigation systems
- Industrial laundry equipment
- Well pump applications
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 22.2/24.0 A, 184TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Frame Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 100.00
Product info last updated on February 10, 2026 5:06pm UTC
Category: Motors
