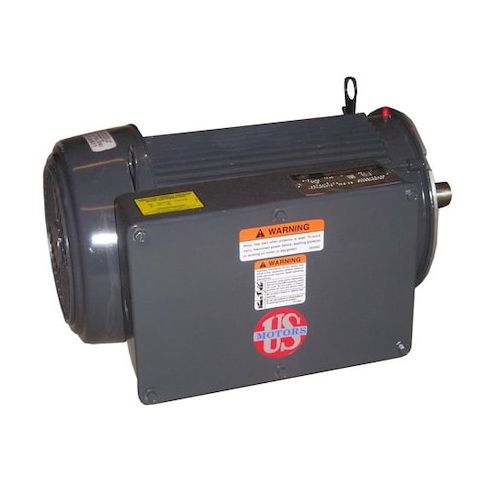

Farm Duty Motor, Capacitor-Start, 7 1/2 HP, 230V AC, 1, 715 Nameplate RPM, 215TZ Frame MPN:FDU7CM2K21Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408385
Farm Duty Motor, Capacitor-Start, 7 1/2 HP, 230V AC, 1, 715 Nameplate RPM, 215TZ Frame
This Farm Duty Motor from US Motors is a reliable and efficient solution for agricultural and industrial applications. With a robust 7 1/2 HP and 1,715 RPM, it can handle demanding tasks with ease. The capacitor-start design ensures smooth operation, while the totally enclosed fan-cooled design provides optimal heat dissipation. Suitable for continuous duty cycles, it can withstand high temperatures and heavy loads. Its rigid base and aluminum frame ensure stability and durability. Ideal for applications such as irrigation systems, grain handling, and material handling, this motor offers a cost-effective and reliable solution for demanding operations.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from environmental factors
- Rigid Base mounting type for secure and stable installation
- Motor Thermal Protection for automatic shutdown and prevention of overheating
Top product applications:
- Well pump
- Tractor mounted equipment
- Agricultural irrigation systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 7 1/2 hp HP, Nameplate RPM 1,715 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.8 A, 215TZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 150.00
Product info last updated on March 10, 2026 11:21pm UTC
Category: Motors
