Farm Duty Motor, Capacitor-Start, 5 HP, 230V AC, 1, 725 Nameplate RPM, 215TZ Frame MPN:FDU5CM2K21Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408379

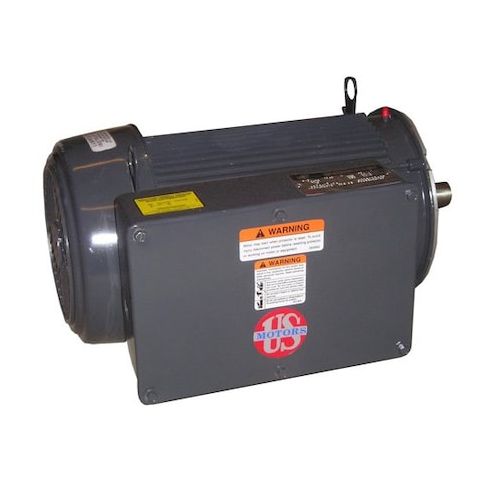

Farm Duty Motor, Capacitor-Start, 5 HP, 230V AC, 1, 725 Nameplate RPM, 215TZ Frame
This 5 HP Farm Duty Motor is designed for heavy-duty applications in agricultural settings, offering reliable performance and long-lasting durability. With a capacitor-start design and 1,725 RPM nameplate speed, it efficiently powers pumps, irrigation systems, and other equipment. The motor's totally enclosed fan-cooled design and rigid base mounting ensure optimal cooling and stability, while its aluminum frame and Class F insulation provide added protection against overheating and electrical stress. Suitable for use in a variety of settings, including farms, ranches, and commercial agricultural operations, this motor delivers continuous performance and is backed by a 1.15 service factor.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean operating environment.
- Rigid Base mounting type allows for secure and stable installation.
- Single Phase, Motor Design Capacitor-Start operation enables efficient and reliable motor performance.
Top product applications:
- Farm equipment
- Pumps and irrigation systems
- Generators and power equipment
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 5 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 29.0 A, 215TZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Aluminum, Shaft Dia. 1 1/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 142.00
Product info last updated on February 26, 2026 6:40am UTC
Category: Motors
