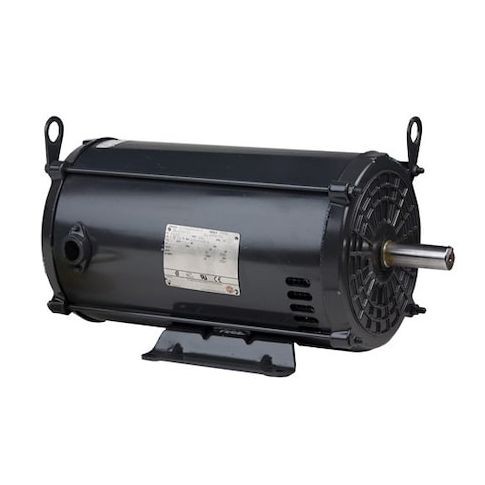

Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 3, 530 Nameplate RPM, 184TZ Frame MPN:FD5CM1K18Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408360
Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 3, 530 Nameplate RPM, 184TZ Frame
This 5 HP Farm Duty Motor is designed for rugged applications and can be used for irrigation pumps, water wells, and other demanding tasks. Its capacitor-start/run design provides efficient operation and long motor life. The motor's open drip-proof enclosure protects against dust and water, while its rigid base mounting ensures stability. With a continuous duty cycle and CW/CCW shaft rotation, this motor can handle a variety of applications, including grain handling, hay drying, and other agricultural tasks. Its compact size and durable construction make it an ideal choice for farms and rural areas.
Top product features:
- Single Phase Motor Design
- Capacitor-Start/Run Technology
- Open Drip Proof Motor Enclosure Design
Top product applications:
- Pumps and irrigation systems for agricultural use
- Well water pumps
- Centrifugal compressors for oil and gas applications
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 3,530 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 21.0 A, 184TZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 1 1/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 15.00
- Package Weight: 90.00
Product info last updated on February 16, 2026 12:43am UTC
Category: Motors
