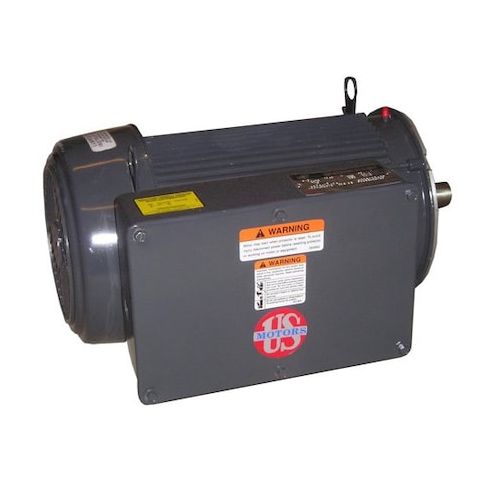

Farm Duty Motor, Capacitor-Start, 1 1/2 HP, 115/230V AC, 1, 745 Nameplate RPM, 143T Frame MPN:FDU32CM2P14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408254
Farm Duty Motor, Capacitor-Start, 1 1/2 HP, 115/230V AC, 1, 745 Nameplate RPM, 143T Frame
This Farm Duty Motor from US Motors is a reliable and efficient solution for various agricultural and industrial applications. Its capacitor-start design and 1.5 HP rating make it suitable for a range of uses, including irrigation systems, grain handling equipment, and farm equipment. With a nameplate RPM of 1,745 and a 143T frame, this motor is designed to provide continuous operation in demanding environments. Its totally enclosed fan-cooled design and rigid base mounting ensure optimal performance and durability, while its manual thermal protection and insulation class F provide added safety and reliability.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor durability and reliability in harsh environments.
- Motor Shaft Rotation is designed for both clockwise and counterclockwise operation, offering flexibility in installation and application.
- Capacitor-Start motor design provides efficient starting and reduced energy consumption.
Top product applications:
- Pumps
- Well Drilling Equipment
- Industrial Fans
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 19.2/10.1 A, 143T Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 47.00
Product info last updated on March 3, 2026 12:01am UTC
Category: Motors
