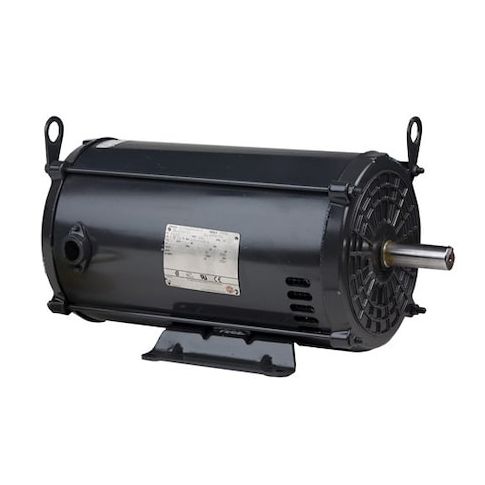

Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 3, 490 Nameplate RPM, 184TZ Frame MPN:FD7CM1K18Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408211
Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 3, 490 Nameplate RPM, 184TZ Frame
This 7.5 HP Farm Duty Motor is designed for demanding agricultural applications, providing reliable performance in a single-phase, capacitor-start/run configuration. Operating at 3,490 RPM and 230V AC, it delivers 30.0 amps of power, making it suitable for a range of tasks, including irrigation systems, grain handling equipment, and other farm machinery. Built with a rigid base and open drip-proof enclosure, this motor is easy to install and maintain, with a steel frame and 1 1/8 inch shaft diameter for added durability. Ideal for continuous duty cycles, it's perfect for high-usage applications where reliability and efficiency are paramount.
Top product features:
- Capacitor-start/run motor design for efficient starting and operation
- Continuous duty cycle for reliable performance in demanding applications
- Open drip-proof enclosure for protection against dust and moisture
Top product applications:
- Pumping water for irrigation systems
- Powering grain dryers
- Operating farm equipment such as threshers and balers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.0 A, 184TZ Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 1 1/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 14.50
- Package Height: 14.50
- Package Weight: 90.00
Product info last updated on February 12, 2026 3:00pm UTC
Category: Motors
