Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 3, 450 Nameplate RPM, 56Z Frame MPN:FD34CA1PZ
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408193

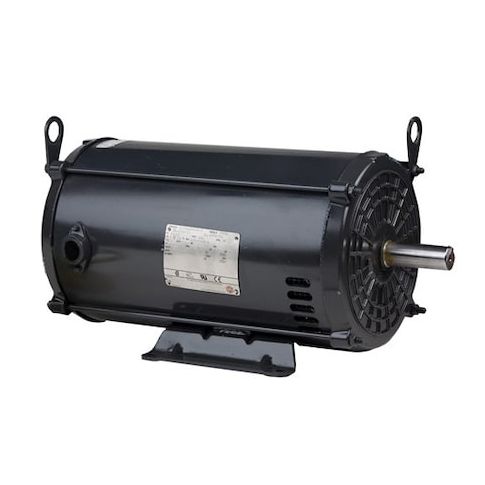

Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 3, 450 Nameplate RPM, 56Z Frame
This Farm Duty Motor is a reliable and efficient solution for various agricultural and industrial applications. Its capacitor-start design and 3/4 HP rating make it suitable for powering pumps, irrigation systems, and other heavy-duty equipment. The motor's 115/230V AC compatibility and 3,450 RPM nameplate speed ensure smooth and consistent operation. With a totally enclosed air-over design and rigid base mounting, this motor can withstand harsh environments and heavy loads. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity. Ideal for use in farms, ranches, and industrial settings.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and moisture.
- Motor has a single phase capacitor-start design for efficient operation.
- Shaft rotation is reversible, allowing for CW and CCW rotation options.
Top product applications:
- Pumps and irrigation systems for agricultural use
- Water treatment plants and pumping stations
- Industrial laundry facilities and large washers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.0/5.5 A, 56Z Frame, Usable @ 208V Not Usable at 208V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Frame Material Steel, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 23.00
Product info last updated on February 4, 2026 3:11am UTC
Category: Motors
