Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame MPN:FD34CM2PZYR
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0408184

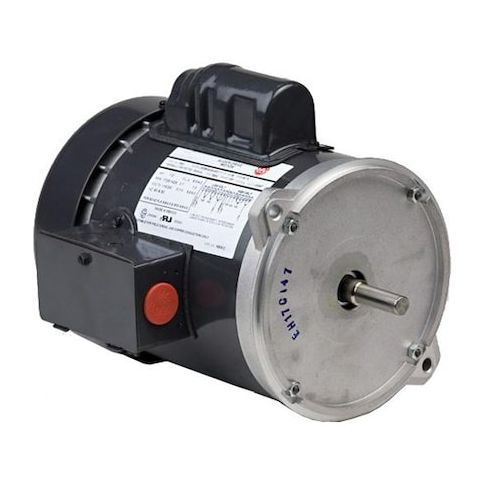

Farm Duty Motor, Capacitor-Start, 3/4 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame
This US Motors Farm Duty Motor is a reliable and efficient choice for agricultural and industrial applications. With a single phase, capacitor-start design and 3/4 HP power, it can handle demanding tasks such as irrigation systems, grain dryers, and other farm equipment. Its 1,725 RPM nameplate speed and continuous duty cycle ensure consistent performance in a variety of environments. The motor's totally enclosed fan-cooled design and steel frame provide durability and long lifespan, while its 56YZ frame size allows for easy installation and maintenance. Ideal for use in farms, ranches, and industrial settings, this motor offers a cost-effective solution for heavy-duty applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operation in harsh environments.
- Motor Shaft Rotation CW/CCW allows for flexibility in installation and application.
- 56YZ Frame design provides a compact and robust motor housing.
Top product applications:
- Pumps for irrigation systems
- Fans for agricultural ventilation
- Powers for grain dryers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.6/5.3 A, 11.8/5.9 A, 56YZ Frame, Usable @ 208V Not Usable at 208V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Flange, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 38.00
Product info last updated on March 7, 2026 5:25pm UTC
Category: Motors
